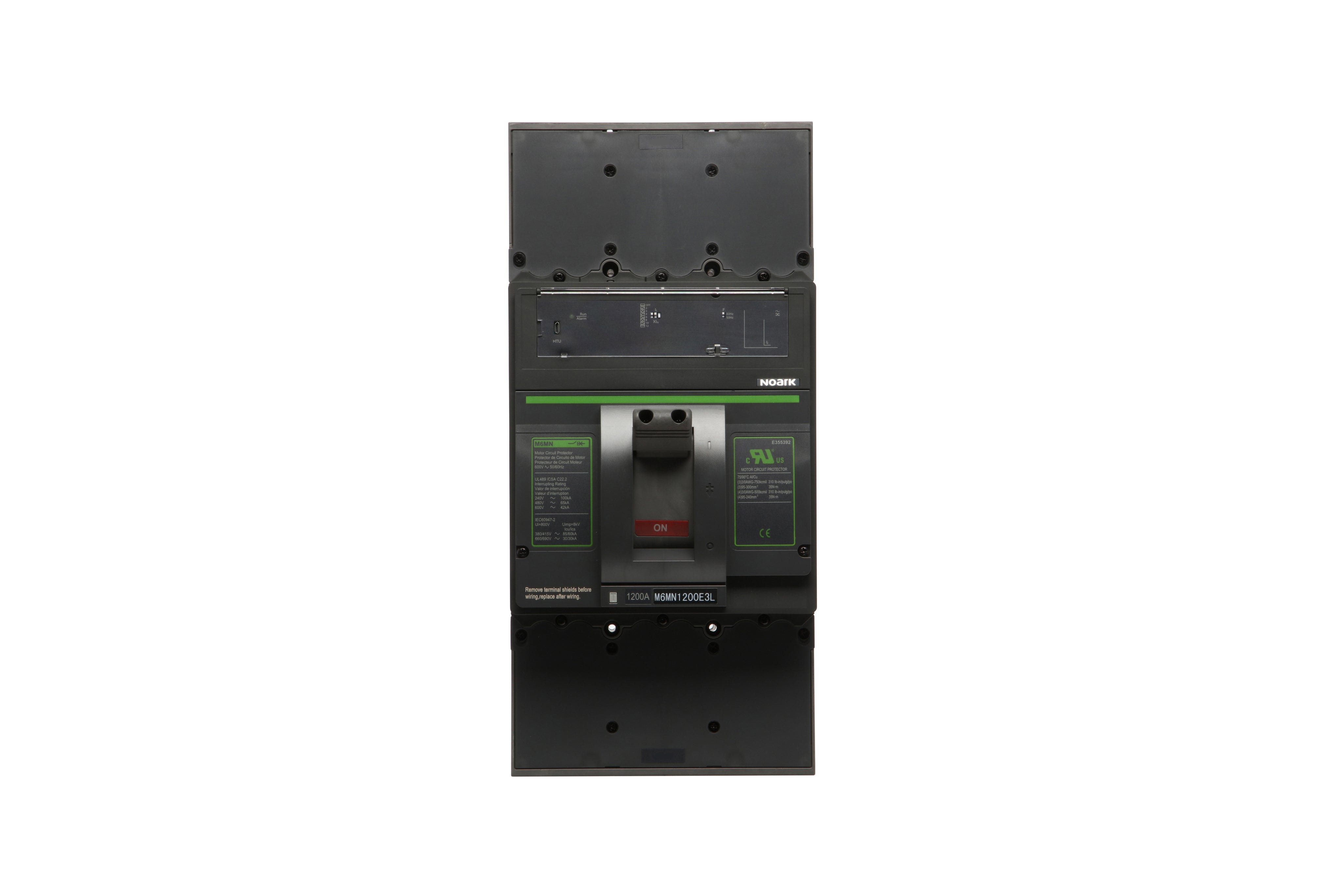

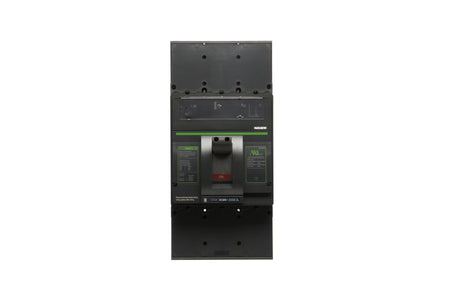

M6D8003LF-MCS UL 489 , M6D, 1200 A Frame Size, 42kA@480Vac, 800A, 3P, Lug Line/Load Side
Regular price
$5,342.62 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Switch-disconnector |
| Product series / family name | Electrical protection > Disconnector switches > AC automatic Moulded Case Switches (MCS) |
| Sub-range name | Ex9M6D series |
| Functions | Front-operated toggle moulded case switch-disconnector (MCS) |
| Design | 100% rated non-fusible |
| Poles | 3-poles (3P3d) |
| Rated operating voltage (Ue) | (IEC) 690 |
| Rated voltage (AC) | 600Vac (50/60Hz) |
| Rated impulse voltage (Uimp) | 8 |
| Rated insulation voltage (Ui) | 800 |
| Connection type | Lugs on both load and line sides |
| Cross-section | connects with #3/0AWG (000)...750kcmil / 95mm2...300mm2 conductors (3-hole lugs) or #3/0AWG (000)...500kcmil / 95mm2...240mm2 conductors (4-hole lugs) |
| Short circuit breaking rating | 100kA (240Vac) 65kA (480Vac) 42kA (600Vac) |
| Ultimate short circuit current breaking capacity (Icu) | 85kA (220/240Vac) 85kA (380/415Vac) 30kA (660/690Vac) |
| Protection settings | Magnetic instantaneous protection against short-circuit -- fixed at 12000A |
| Dimensions | H450mm x W210mm x D167.6mm H17.72" x W8.27" x D6.6" |
| Utilisation category | A |
| Order code / Manufacturer SKU | M6D8003LF 1101922 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1101922 |
| Compliant with standard(s) | UL489 listed UL489 listed (file number E355396) CSA C22.2 No.5 IEC/EN 60947-2 CE compliant RoHS compliant |
| Electrical durability | 500 hours |
| Mechanical durability | 3000 hours |
| Short Description | Switch-disconnector MCS - 1101922 - 100% rated - UL489 - M6 frame - 3P3d - 800A rated - 600Vac |
| Type | Option = special version (100% rated) |
| Rated current | 800A |
| Service short circuit current breaking capacity as a percentage of Icu (Ics%) | 100 % |
| Connection type(electrical) | Fixed Lug connection |
| Net weight | 25200 |
| Cross - sells with | AL/AX21P SHT26NA SHT26NB SHT26NC SHT26ND SHT26NE SHT26NG SHT26NH UVT26ND MIT26NA FH4XC FH4XD OMC OMB26 FST10 FST3 FST4 FST5 NOARK-FST6 FST7 FST8 FST9 |
| Category code | Global_Cat_001001006 Electrical components Electrical circuits protection Switch-disconnectors |
| Product title | Front-operated toggle moulded case switch-disconnector (MCS) - NOARK Ex9M6D series |
| Description generating formula | A |
| Description | Front-operated toggle moulded case switch-disconnector (MCS) - 100% rated - non-fusible - UL489 listed - NOARK (Ex9M6D series) - 3-poles (3P3d) - Rated current 800A - Interrupting capacity 42kA (600Vac) - Lugs on both load and line sides - equivalent to 1101922 |
| Catalogue connector | NOARK - Ex9M6D series M6D8003LF |
| Benefits | NOARK Electric offers a complete range of Molded Case Switches in 6 frame sizes: M1 (150A), M2 (250A), M3 (400A), M4 (600A), M5 (800A) and M6 (1200A). Each frame size offers a range of interrupting voltage ratings from 240-690Vac and 250-600Vdc. They are only used for magnetic protection applications mainly as supply circuit protection and emergency-off disconnect switches. The Ex9 Series-M conforms to global standards - UL 489 - CSA C22.2 No 5 - IEC 60947-2. The Ex9 Series-M offers - Instantaneous trip ability and a new patented arc extinguishing design - New patented technology reduces the manual operating force - High-quality compact modular with energy saving and environmentally friendly design - Installation flexibility - Lug Line/Load Side Connection / Rear Connection Wide range of accessories - Alarm Switch and Auxiliary Contact - Shunt and Undervoltage Trip - Interlock - NEMA and ICE Type Rotary Handle - NEMA Type Flange Handle - Motor Operator |
