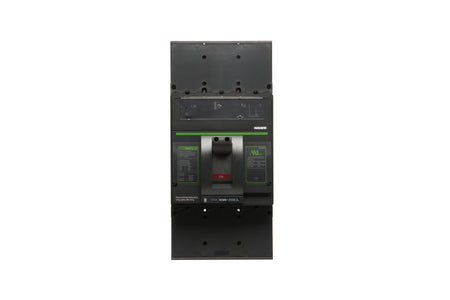

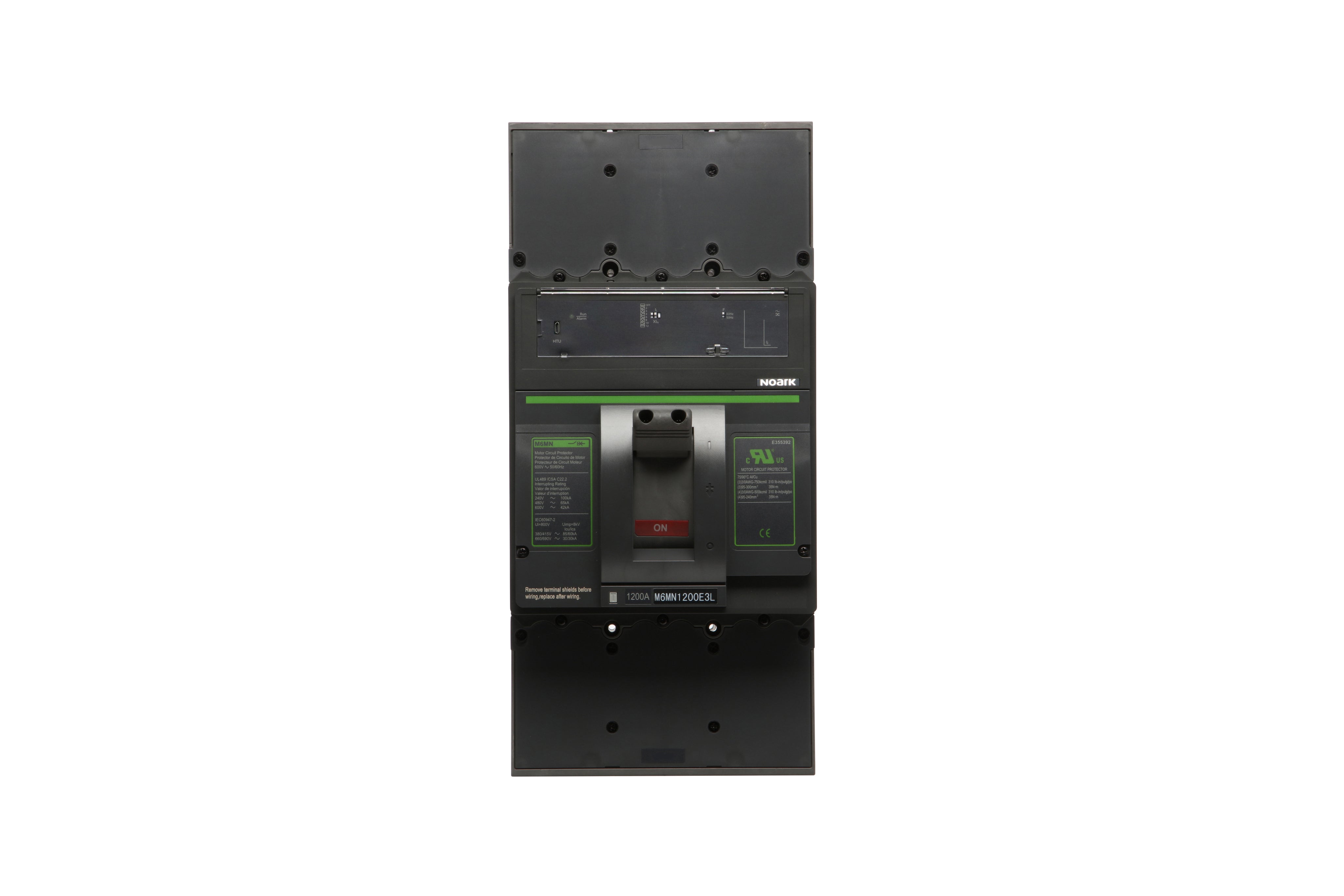

M6MN1200E3LF-MCP UL489, M6MN, 1200 A Frame Size, 65 kA @ 480 Vac, 1200A, 3P, Lug Line/Load Side
Regular price
$9,311.76 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Motor Protection Circuit Breaker (MPCB) |
| Product series / family name | Electrical protection > Circuit breakers > Motor-Circuit Protectors (MCPs) |
| Sub-range name | Ex9M6M series |
| Functions | Motor Circuit Protector (MCP) |
| Design | 100% rated |
| Poles | 3-poles (3P3d) |
| Frame current rating | 1200 |
| Rated operating voltage (Ue) | (IEC) 690 |
| Rated voltage (AC) | 600Vac (50/60Hz) |
| Rated impulse voltage (Uimp) | 8 |
| Rated insulation voltage (Ui) | 800 |
| Connection type | Lugs on both load and line sides |
| Short circuit breaking rating | 100kA (240Vac) 65kA (480Vac) 42kA (600Vac) |
| Ultimate short circuit current breaking capacity (Icu) | 85kA (220/240Vac) 45kA (380/415Vac) 30kA (660/690Vac) |
| Trip unit type | ```Technology = Electronic |
| Protection functions | Adjustable thermal protection (Overload) Adjustable threshold Magnetic protection (Short-circuit) |
| Protection settings | L - Protection against overload -- adjustable FLA to 7 pre-defined settings (184.6...276.8A / 276.9...369.1A / 369.2...553.7A / 553.8...738.4A / 738.5...923A / 923.1...1107.6A / 1107.7-1309.1A) I - Instantaneous protection against short-circuit -- adjustable at 2/3/4/6/8/10/12 x In (6000A...13200A) |
| Dimensions | H450mm x W210mm x D167.6mm H17.72" x W8.27" x D6.6" |
| Order code / Manufacturer SKU | M6MN1200E3LF 1101942 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1101942 |
| Compliant with standard(s) | UL489 listed UL489 recognized (file number E355392) CSA C22.2 No.5 IEC/EN 60947-2 CE compliant RoHS compliant |
| Electrical durability | 500 hours |
| Mechanical durability | 3000 hours |
| Short Description | MCP - 1101942 - 100% rated - UL489 - M6 frame - 3P3d - 1200A rated - 600Vac |
| Type | Option = special version (100% rated) |
| Rated current | 1200A (continuous Amperes) |
| Connection type(electrical) | Fixed Lug connection |
| Net weight | 25200 |
| Cross - sells with | AL/AX21P SHT26NA SHT26NB SHT26NC SHT26ND SHT26NE SHT26NG SHT26NH UVT26ND KLK26NA MIT26NA FH4XC FH4XD OMC OMB26 FST10 FST3 FST4 FST5 NOARK-FST6 FST7 FST8 FST9 LTC26NCA LTC26NDA |
| Category code | Global_Cat_001001001004 Electrical components Electrical circuits protection Circuit Breakers (CB) Motor Protection Circuit Breakers (MPCB) |
| Product title | Motor Circuit Protector (MCP) - NOARK Ex9M6M series |
| Description generating formula | A |
| Description | Motor Circuit Protector (MCP) - 100% rated - UL489 listed - NOARK (Ex9M6M series) - 3-poles (3P3d) - Rated current 1200A (continuous Amperes) - Interrupting capacity 42kA (600Vac) - Lugs on both load and line sides - Electronic trip unit - equivalent to 1101942 |
| Catalogue connector | NOARK - Ex9M6M series M6MN1200E3LF |
| Benefits | NOARK Electric offers a complete range of 3pole Molded Case Motor Circuit Protectors (MCPs magnetic only) These MCPs are for 3-phase asynchronous motors protection. We offer MCPs in 6 frame sizes - M1M (150A), M2M (250A), M3M (400A), M4M (600A), M5M (800A) and M6M (1200A). Each frame size offers a range of interrupting voltage ratings from 240-690Vac. This series MCP conforms to global standards that include UL 489 / CSA C22.2 No 5 and IEC 60947-2. The traditional system used for this purpose relies on 3 different devices. These include a circuit breaker, a thermal relay and a contactor for motor switching. In particular, when selecting these devices, different factors must be taken into consideration such as - The rated motor power - The type of motor: with cage rotor or with wound rotor - The fault current at the point of the network where the motor is installed Certifications - UL 489 Recognized File Number E355392 - UL Recognized to UL489 and CSA standards 22.2 No. 5 - IEC/EN 60947-2 - CE Compliant - RoHS Compliant |
