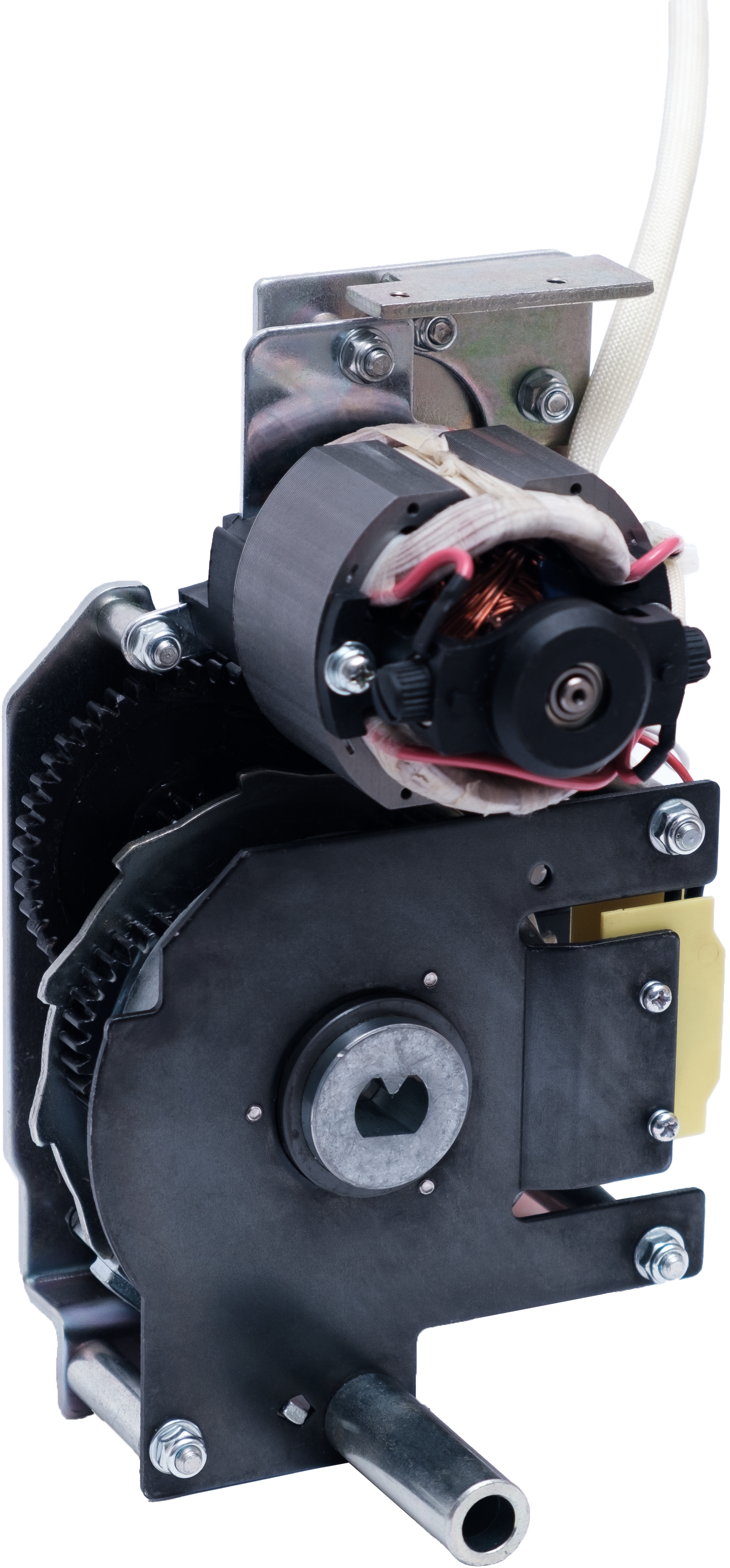

MD11NAD-Motor operator, For 2500A ACB (A25) ACB, Drawout type, Control voltage 24-30VDC
Regular price
$1,130.10 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Charging motor |
| Product series / family name | Electrical protection > ACBs and disconnector switches accessories > Motor operators |
| Sub-range name | A25 series |
| Functions | Charging motor / remote operator |
| Order code / Manufacturer SKU | MD11NAD 1801046 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1801046 |
| Technical compatibility with | for A25/ASD25 (2500A) frame size |
| Short Description | Motor operator - 1801046 - 24-30Vdc - for A25/ASD25 (2500A) ACB/switch disconnector |
| Type | Option = Standard (No options) |
| Supply voltage(DC) | 20-33Vdc (24Vdc-30Vdc nom.) ``24 |
| Control Voltage (DC) | 20-33Vdc (24Vdc-30Vdc nom.) ``24 |
| Power consumption | (inrush) 800 (continuous) 200 (inrush) 800 (continuous) 200 |
| Response time | (charging time) max. 4 |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | Charging motor / remote operator - NOARK A25 series |
| Description generating formula | A |
| Description | Charging motor / remote operator - for A25/ASD25 (2500A) frame size - NOARK (A25 series) - 20-33Vdc (24Vdc-30Vdc nom.) supply voltage - equivalent to 1801046 |
| Catalogue connector | NOARK - A25 ASD25 accessories MD11NAD |
