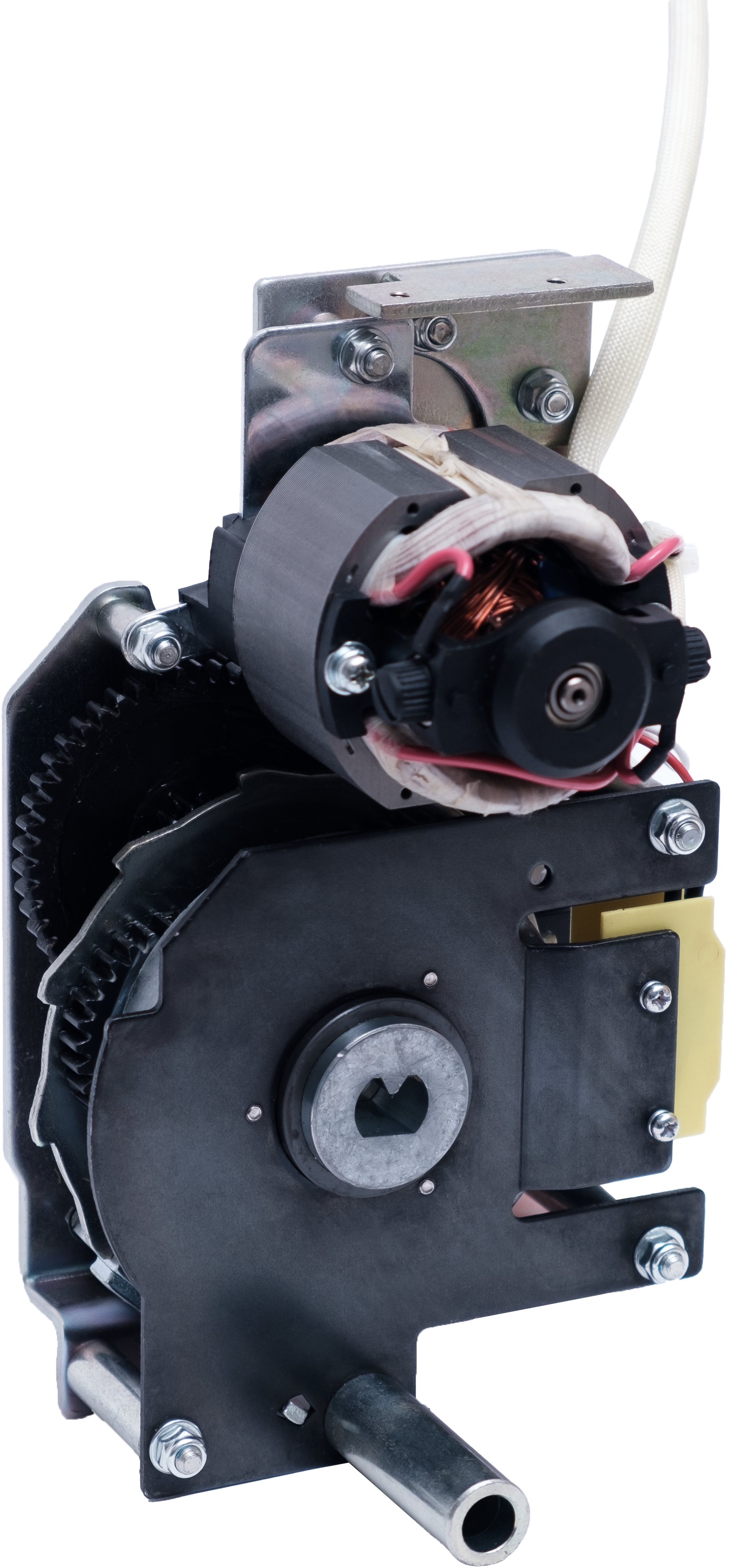

MD11NDF-Motor operator, For 2500A (A25) ACB, Fixed type, Control voltage 200-240VAC/DC
Regular price
$1,130.10 CAD
Couldn't load pickup availability
DUTY NOTICE!
For international shipping to outside of Canada, all price listed doesn't not inlcude duties. it is customer's responsibility to pay all associated duties.
| Primary brand | NOARK |
| Main function | Charging motor |
| Product series / family name | Electrical protection > ACBs and disconnector switches accessories > Motor operators |
| Sub-range name | A25 series |
| Functions | Charging motor / remote operator |
| Order code / Manufacturer SKU | MD11NDF 1801044 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1801044 |
| Technical compatibility with | for A25/ASD25 (2500A) frame size |
| Short Description | Motor operator - 1801044 - for A25/ASD25 (2500A) ACB/switch disconnector |
| Type | Option = Standard (No options) |
| Supply voltage(AC) | 170-264Vac (200Vac-240Vac nom.) |
| Supply voltage(DC) | 170-264Vdc (200Vdc-240Vdc nom.) `200 `220 |
| Control Voltage (DC) | 170-264Vdc (200Vdc-240Vdc nom.) `200 `220 |
| Control Voltage (AC) | 170-264Vac (200Vac-240Vac nom.) |
| Power consumption | (inrush) 1800 (continuous) 180 (inrush) 1800 (continuous) 180 |
| Response time | (charging time) max. 4 |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | Charging motor / remote operator - NOARK A25 series |
| Description generating formula | A |
| Description | Charging motor / remote operator - for A25/ASD25 (2500A) frame size - NOARK (A25 series) - 170-264Vac (200Vac-240Vac nom.) / 170-264Vdc (200Vdc-240Vdc nom.) supply voltage - equivalent to 1801044 |
| Catalogue connector | NOARK - A25 ASD25 accessories MD11NDF |
