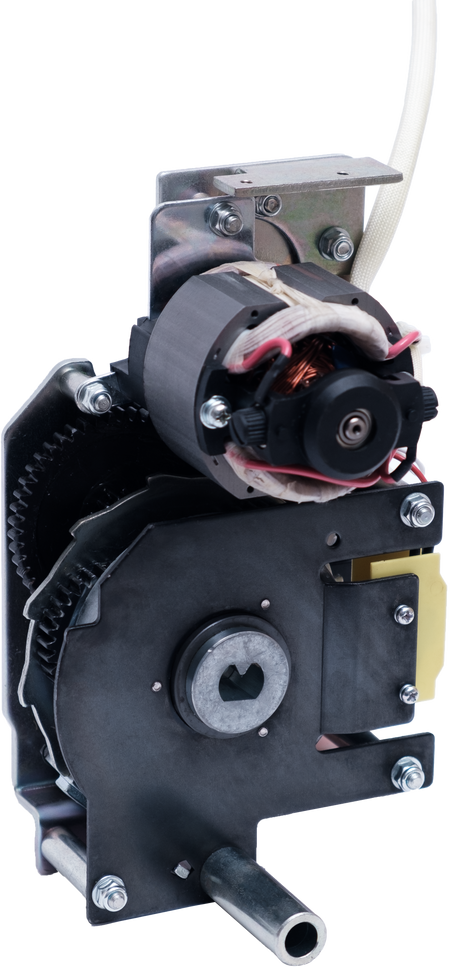

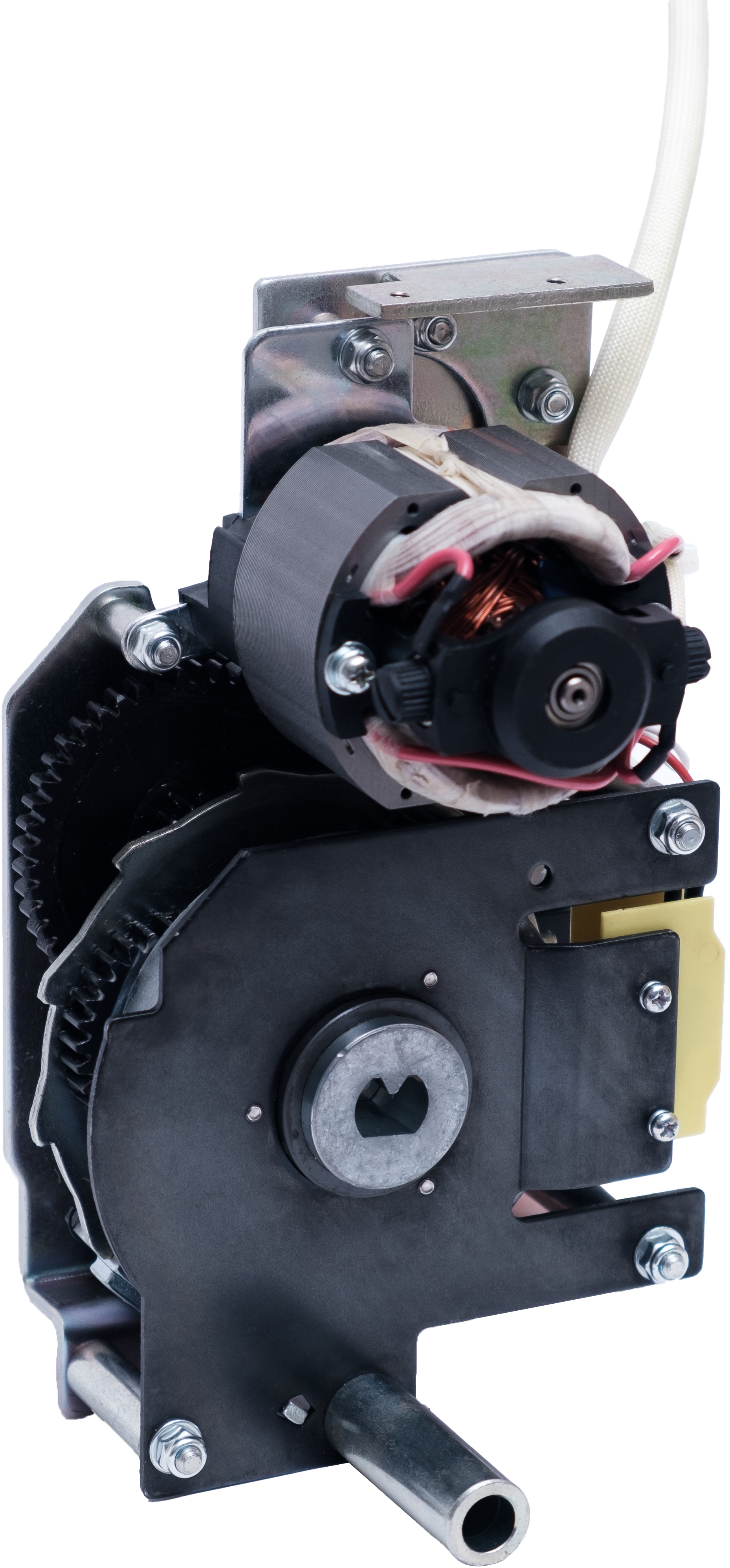

MD12NA-Motor operator, For 3200/4000A Frame (A32/A40) ACB, Control voltage 24-30Vdc
Regular price
$1,281.84 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Charging motor |
| Product series / family name | Electrical protection > ACBs and disconnector switches accessories > Motor operators |
| Sub-range name | A32 series |
| Functions | Charging motor / remote operator |
| Dimensions | H201.9mm x W117.1mm x D102.4mm H7.95" x W4.61" x D4.03" |
| Order code / Manufacturer SKU | MD12NA 1800308 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1800308 |
| Technical compatibility with | for A32/ASD32 (3200A) frame size |
| Short Description | Motor operator - 1800308 - 24-30Vdc - for A32/ASD32 (3200A) ACB/switch disconnector |
| Type | Option = Standard (No options) |
| Supply voltage(DC) | 20-33Vdc (24Vdc-30Vdc nom.) ``24 |
| Control Voltage (DC) | 20-33Vdc (24Vdc-30Vdc nom.) ``24 |
| Power consumption | (inrush) 800 (continuous) 200 (inrush) 800 (continuous) 200 |
| Response time | (charging time) max. 4 |
| Net weight | 2600 |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | Charging motor / remote operator - NOARK A32 series |
| Description generating formula | A |
| Description | Charging motor / remote operator - for A32/ASD32 (3200A) frame size - NOARK (A32 series) - 20-33Vdc (24Vdc-30Vdc nom.) supply voltage - equivalent to 1800308 |
| Catalogue connector | NOARK - A32 ASD32 accessories MD12NA |
