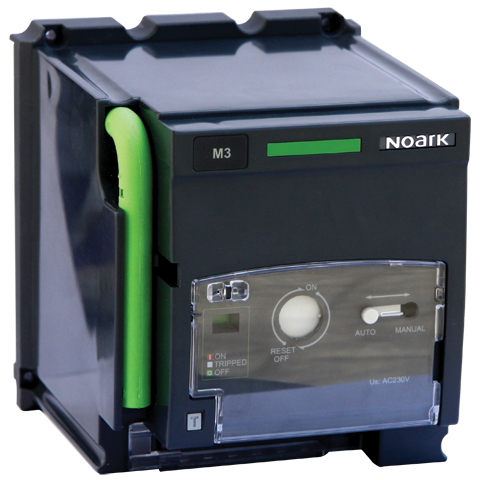

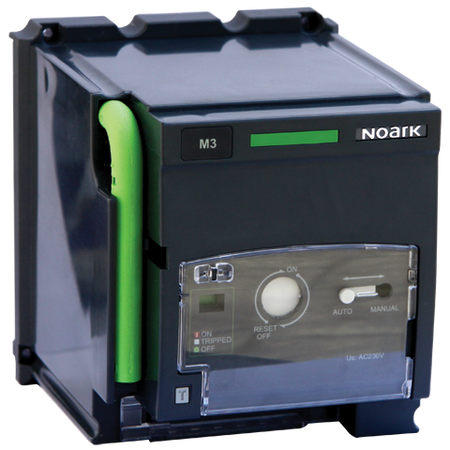

MOD23NA-MCCB Motor Operator UL 489 , M3, 120Vac/dc
Regular price
$587.95 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Charging motor |
| Product series / family name | Electrical protection > MCCBs and disconnector switches accessories > Motor operators |
| Functions | Charging motor / remote operator |
| Dimensions | H153.9mm x W140mm x D143.5mm H6.06" x W5.51" x D5.65" |
| Order code / Manufacturer SKU | MOD23NA 1100569 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1100569 |
| Compliant with standard(s) | UL489 listed (file number E355392) CSA C22.2 No.5 IEC/EN 60947-2 CE compliant RoHS compliant |
| Technical compatibility with | for M3 frame size |
| Short Description | Motor operator - 1100569 - 120Vdc/ac - for M3 |
| Type | Option = Standard (No options) |
| Supply voltage(AC) | 120Vac |
| Supply voltage(DC) | 120Vdc `120 |
| Control Voltage (DC) | 120Vdc `120 |
| Control Voltage (AC) | 120Vac |
| Net weight | 2970 |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | Charging motor / remote operator - NOARK |
| Description generating formula | A |
| Description | Charging motor / remote operator - for M3 frame size - NOARK - 120Vac / 120Vdc supply voltage - equivalent to 1100569 |
| Catalogue connector | NOARK - Circuit breaker accessories MOD23NA |
