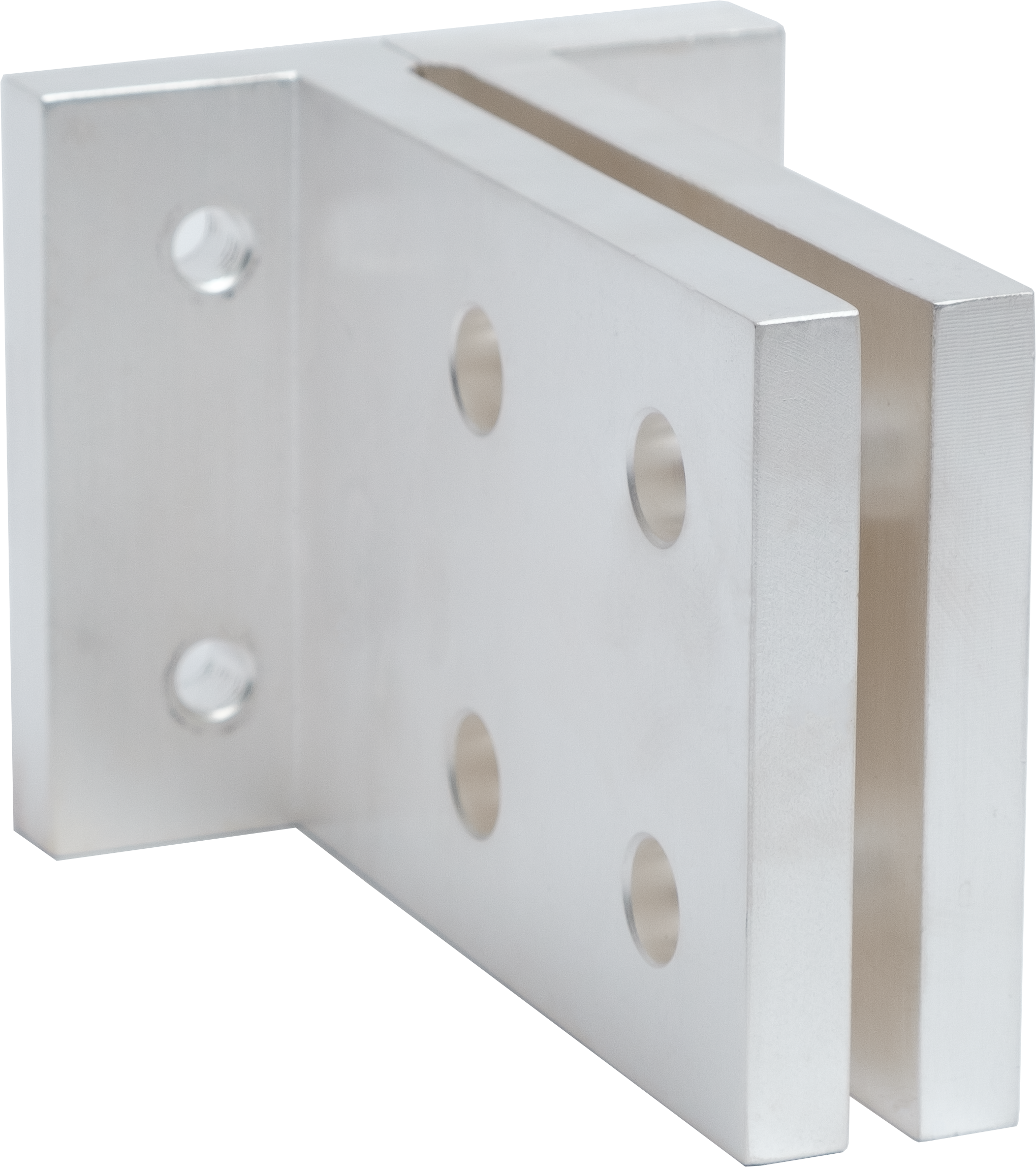

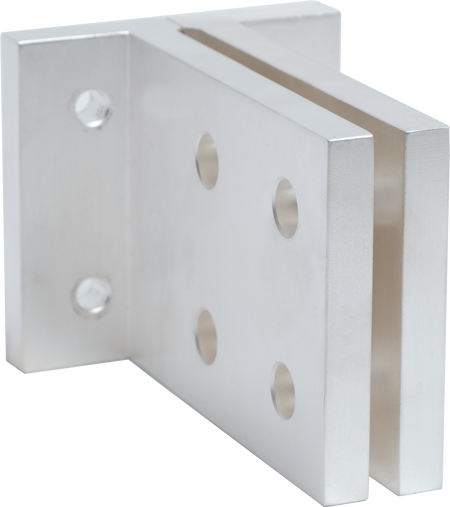

RCP12N3D2500-Rear connection plate, For 3200A Frame (A32) ACB, 3P, Drawout type, 2000A/2500A
Regular price
$2,402.51 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Mounting accessory |
| Product series / family name | Electrical protection > ACBs and disconnector switches accessories > Connection hardware |
| Sub-range name | A32 series |
| Functions | Rear connection kit |
| Poles | for 3-poles (3P) devices |
| Connection type | Withdrawable / drawout |
| Dimensions | H87.9mm x W139.7mm x D89.9mm H3.46" x W5.5" x D3.54" |
| Order code / Manufacturer SKU | RCP12N3D2500 1800343 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1800343 |
| Technical compatibility with | for A32/ASD32 (3200A) frame size |
| Short Description | Rear connection kit - 1800343 - for 3P - for 2000A/2500A rated - withdrawable - for A32/ASD32 (3200A) ACB/switch disconnector |
| Type | Option = Standard (No options) |
| Rated current | for 2000A/2500A |
| Net weight | 15600 |
| Contents | terminal connectors connection plate |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | Rear connection kit - NOARK A32 series |
| Description generating formula | A |
| Description | Rear connection kit - for A32/ASD32 (3200A) frame size - NOARK (A32 series) - for 3-poles (3P) devices - Rated current for 2000A/2500A - Withdrawable / drawout - equivalent to 1800343 |
| Catalogue connector | NOARK - A32 ASD32 accessories RCP12N3D2500 |
