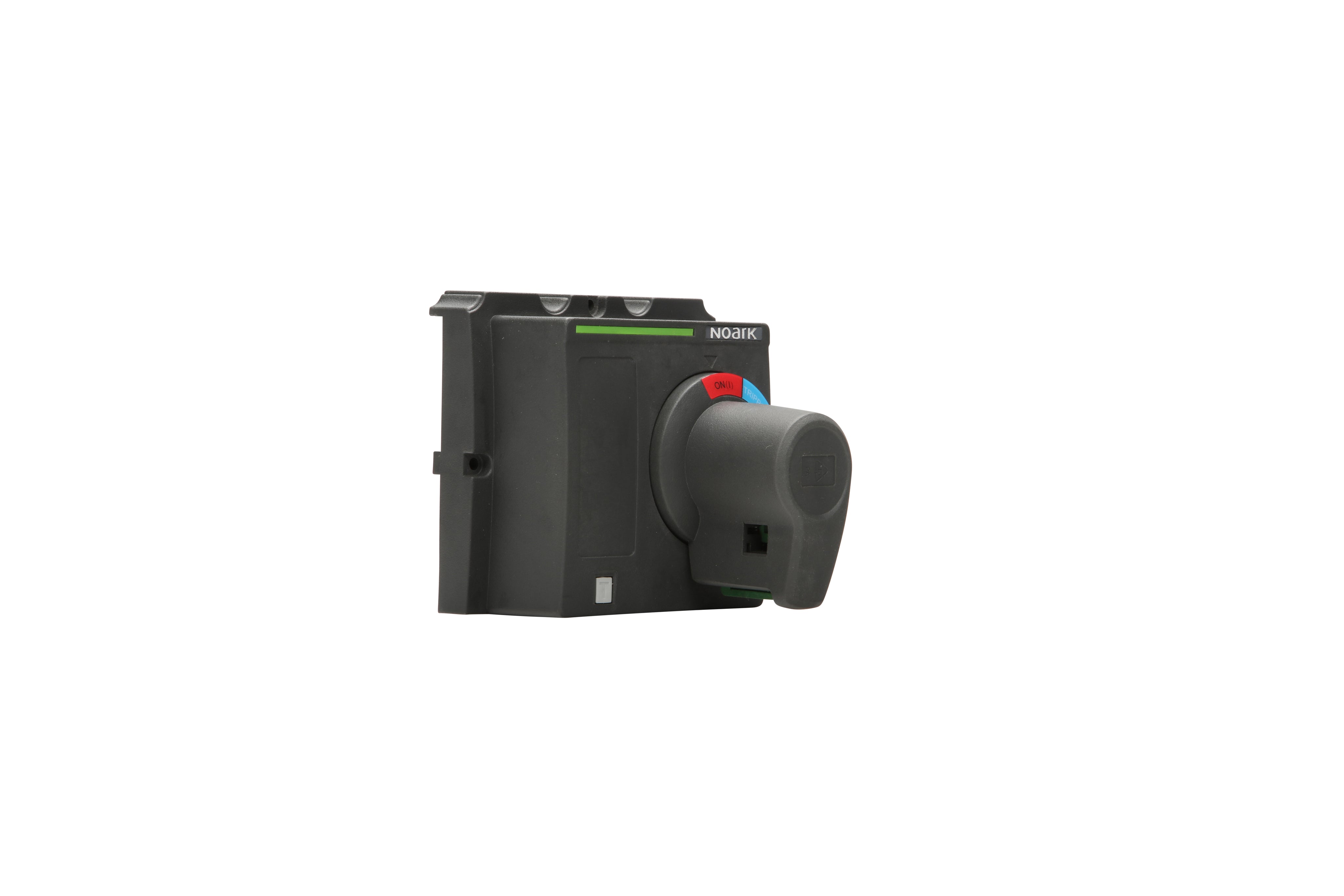

RHD21N2-Rotary handle direct,red/yellow, M1, red/yellow
Regular price
$228.10 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Handle |
| Product series / family name | Electrical protection > MCCBs and disconnector switches accessories > Handles and shafts |
| Functions | IEC close-coupled rotary handle |
| Dimensions | H80.5mm x W74.9mm x D65mm H3.17" x W2.95" x D2.56" |
| Order code / Manufacturer SKU | RHD21N2 1100613 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1100613 |
| Compliant with standard(s) | UL489 listed (file number E355392) CSA C22.2 No.5 IEC/EN 60947-2 CE compliant RoHS compliant |
| Technical compatibility with | for M1 frame size |
| Short Description | IEC close-coupled rotary handle - 1100613 - for M1 - Red/Yellow - IP30 |
| Type | Option = Standard (No options) |
| Color | Red/Yellow |
| Degree of protection | IP30 |
| Net weight | 350 |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | IEC close-coupled rotary handle - NOARK |
| Description generating formula | A |
| Description | IEC close-coupled rotary handle - for M1 frame size - NOARK - Red/Yellow - IP30 - equivalent to 1100613 |
| Catalogue connector | NOARK - Circuit breaker accessories RHD21N2 |
