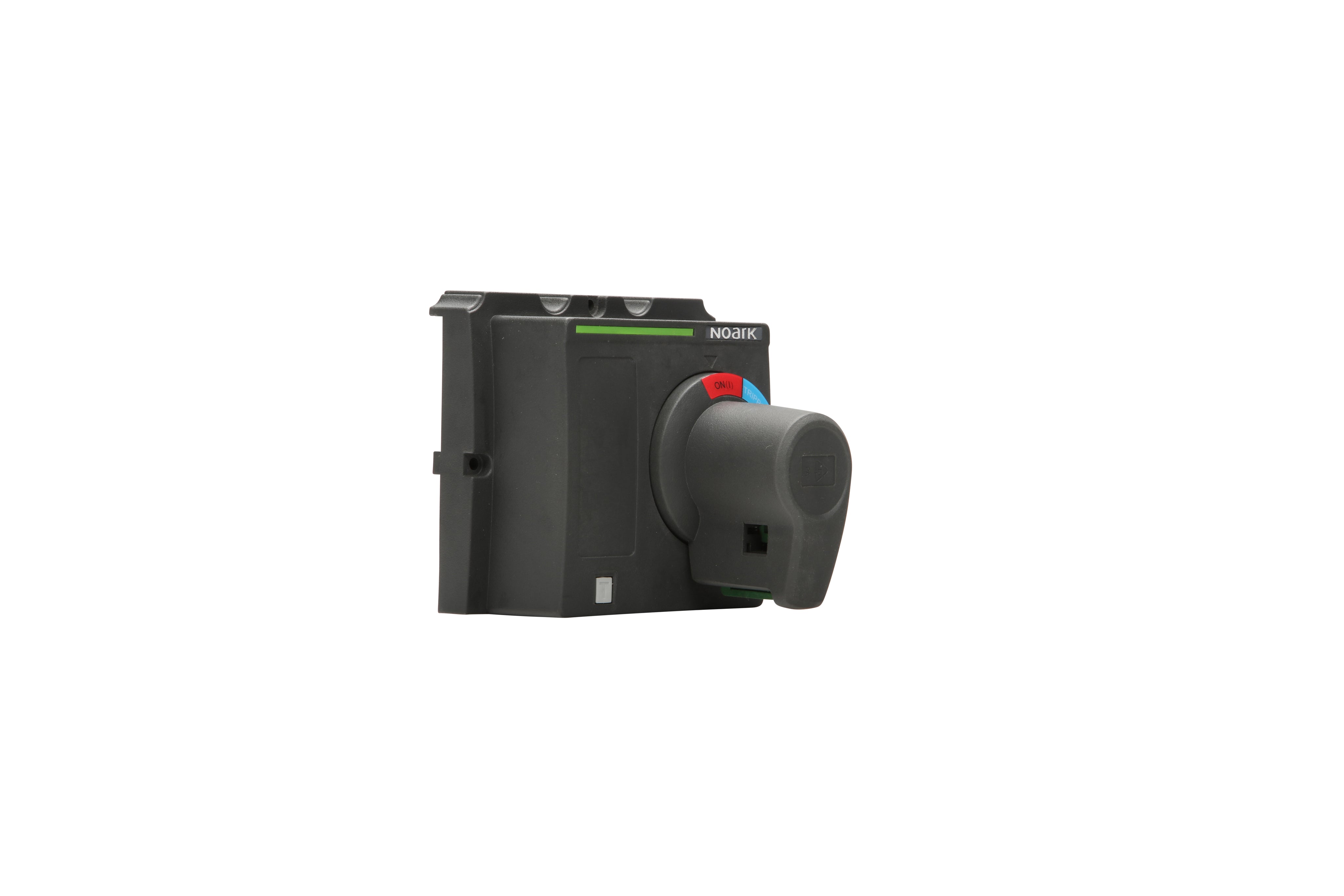

RHD22N1-Rotary handle direct,grey/green , M2, grey/green
Regular price
$198.29 CAD
Couldn't load pickup availability
DUTY NOTICE!
For international shipping to outside of Canada, all price listed doesn't not inlcude duties. it is customer's responsibility to pay all associated duties.
| Primary brand | NOARK |
| Main function | Handle |
| Product series / family name | Electrical protection > MCCBs and disconnector switches accessories > Handles and shafts |
| Functions | IEC close-coupled rotary handle |
| Dimensions | H93.5mm x W89.9mm x D83.1mm H3.68" x W3.54" x D3.27" |
| Order code / Manufacturer SKU | RHD22N1 1100556 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1100556 |
| Compliant with standard(s) | UL489 listed (file number E355392) CSA C22.2 No.5 IEC/EN 60947-2 CE compliant RoHS compliant |
| Technical compatibility with | for M2 frame size |
| Short Description | IEC close-coupled rotary handle - 1100556 - for M2 - Gray/Green - IP30 |
| Type | Option = Standard (No options) |
| Color | Gray/Green |
| Degree of protection | IP30 |
| Net weight | 430 |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | IEC close-coupled rotary handle - NOARK |
| Description generating formula | A |
| Description | IEC close-coupled rotary handle - for M2 frame size - NOARK - Gray/Green - IP30 - equivalent to 1100556 |
| Catalogue connector | NOARK - Circuit breaker accessories RHD22N1 |
