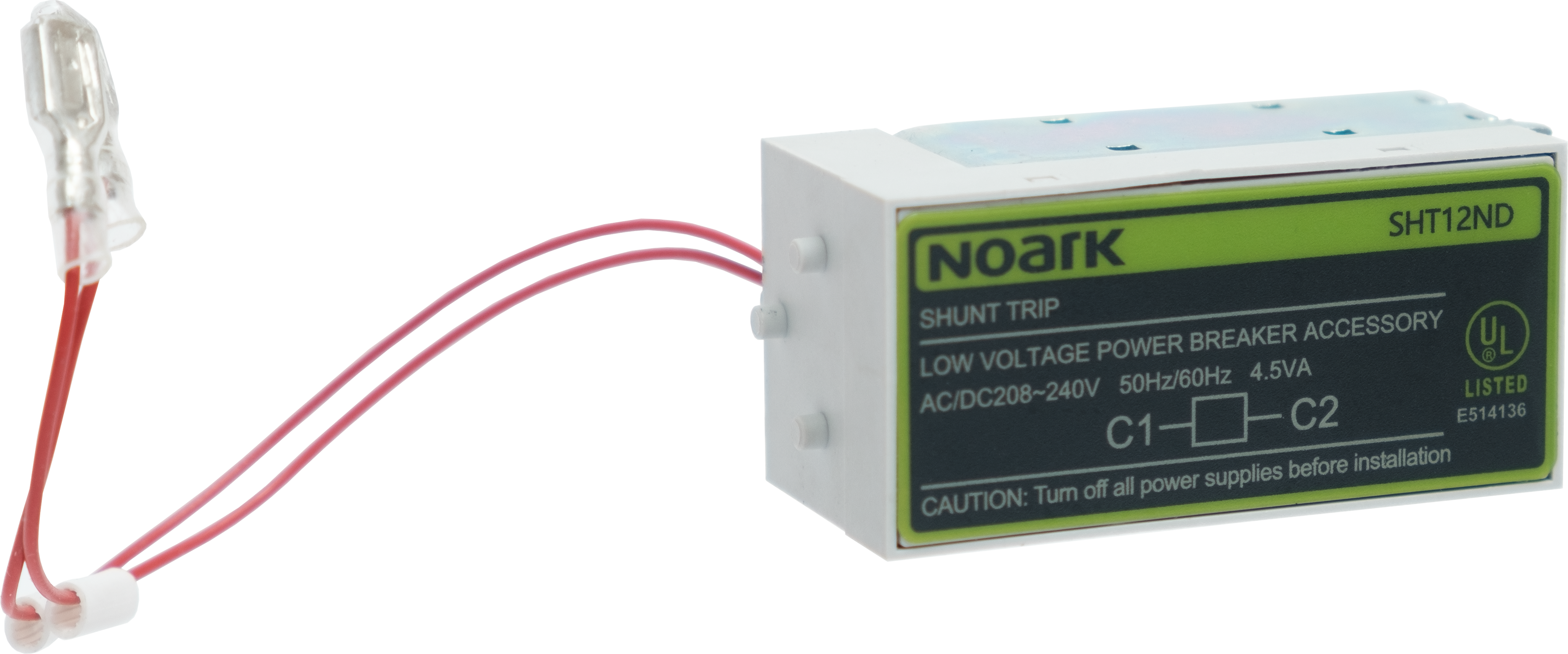

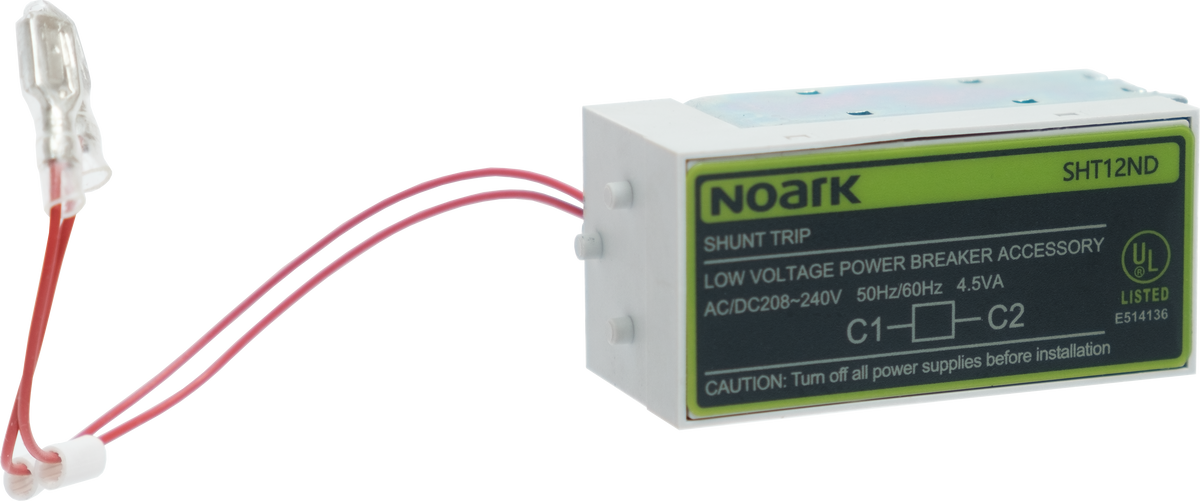

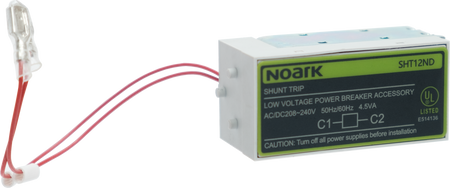

SHT12NC-Shunt Trip, For 3200/4000A (A32/A40) ACB, Control voltage 110-130Vac/dc
Regular price
$481.45 CAD
Couldn't load pickup availability
DUTY NOTICE!
For international shipping to outside of Canada, all price listed doesn't not inlcude duties. it is customer's responsibility to pay all associated duties.
| Primary brand | NOARK |
| Main function | Coil (Tripping) |
| Product series / family name | Electrical protection > ACBs and disconnector switches accessories > Auxiliary controls |
| Sub-range name | A32 series |
| Functions | Shunt trip release coil |
| Dimensions | H65.3mm x W35.3mm x D32mm H2.57" x W1.39" x D1.13" |
| Order code / Manufacturer SKU | SHT12NC 1800274 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1800274 |
| Technical compatibility with | for A32/ASD32 (3200A) frame size |
| Short Description | Shunt trip release coil - 1800274 - 110-130Vdc/ac - for A32/ASD32 (3200A) ACB/switch disconnector |
| Type | Option = Standard (No options) |
| Power consumption | (inrush) 500 (continuous) 4.5 (inrush) 500 (continuous) 4.5 |
| Response time | (operating time) max. 50ms / 0.05 |
| Net weight | 160 |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | Shunt trip release coil - NOARK A32 series |
| Description generating formula | A |
| Description | Shunt trip release coil - for A32/ASD32 (3200A) frame size - NOARK (A32 series) - 77-143Vdc (110Vdc-130Vdc nom.) / 77-143Vac (110Vac-130Vac nom.) control voltage - equivalent to 1800274 |
| Catalogue connector | NOARK - A32 ASD32 accessories SHT12NC |
