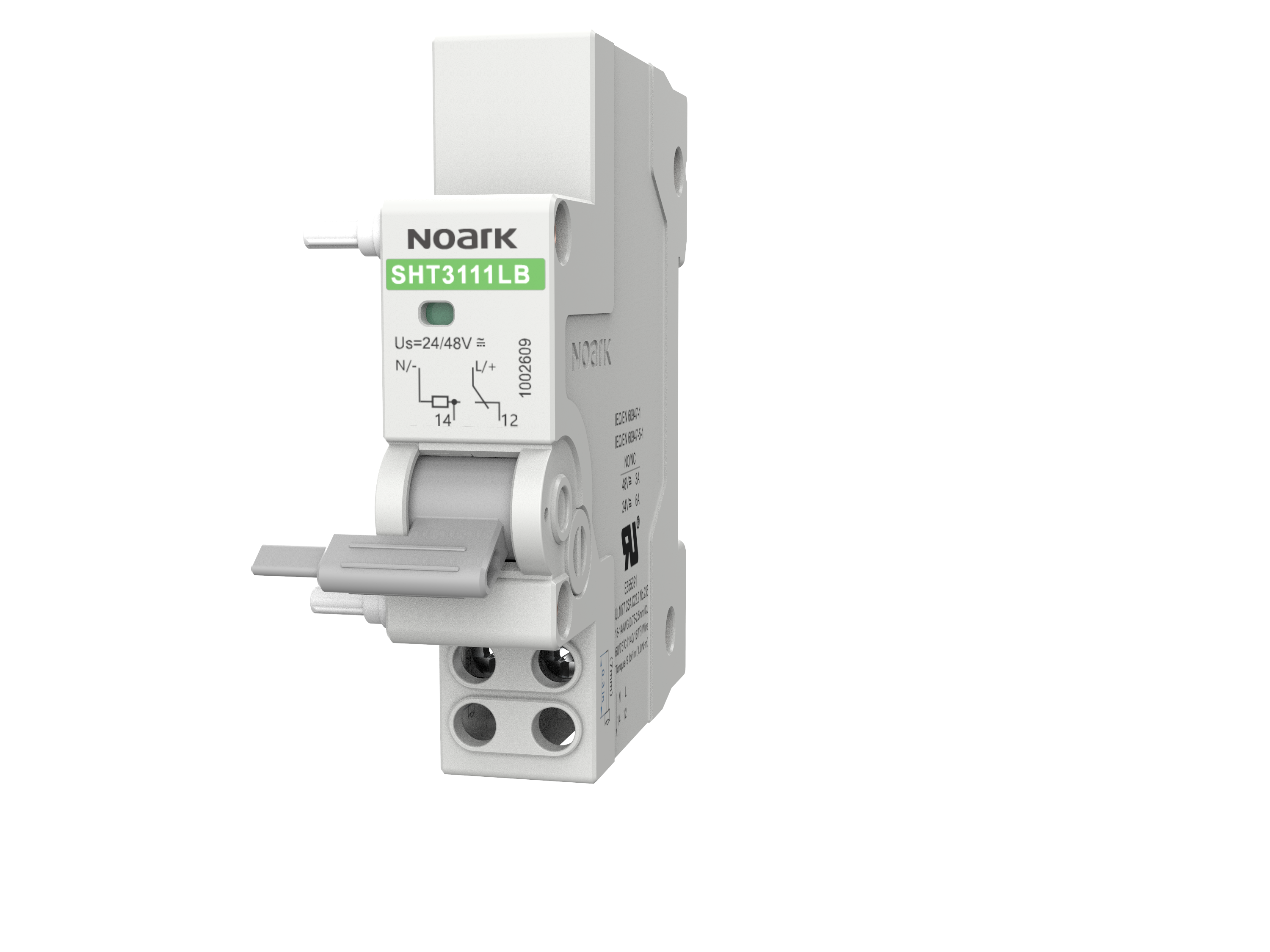

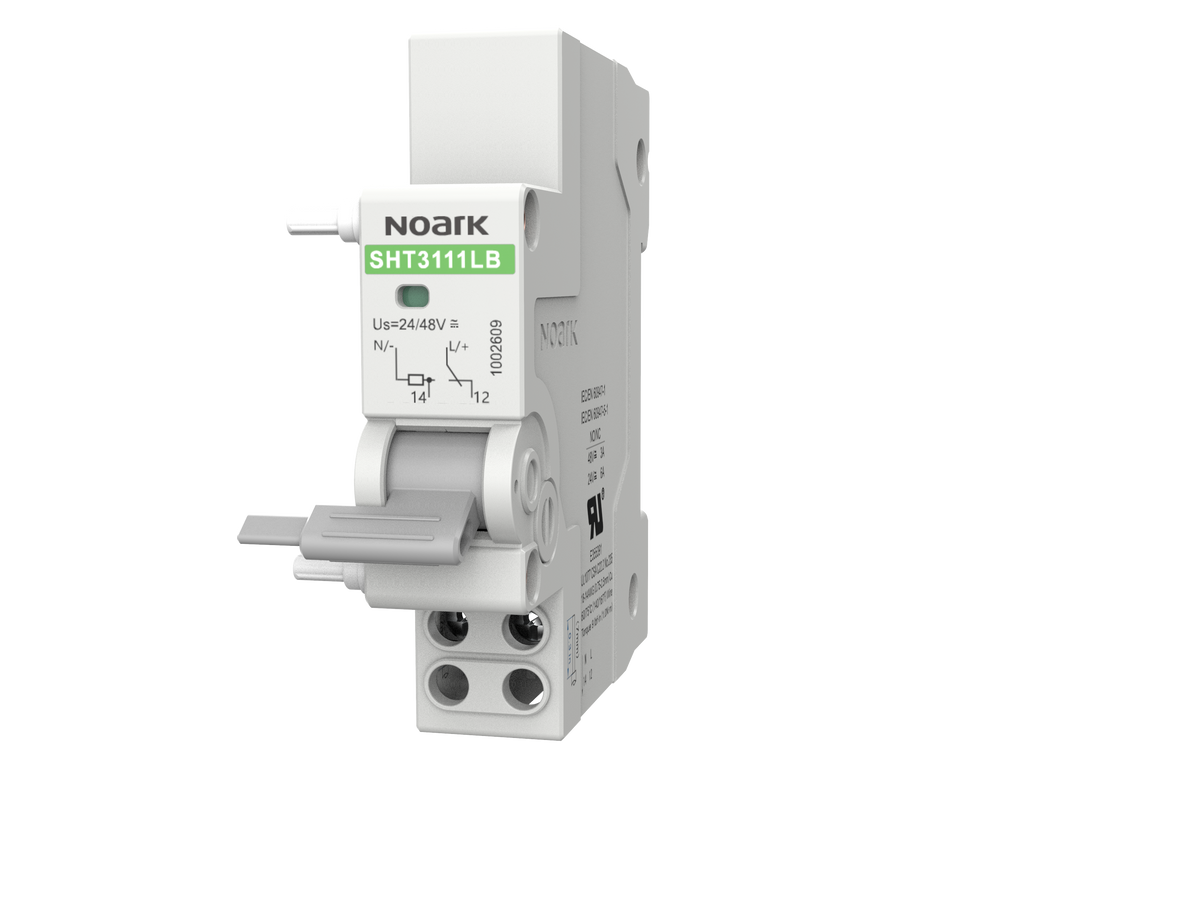

SHT3111LB-MCB Shunt Trip, UL 1077, 1NO+1NC, 24~48 Vac/dc B1E80~125A
Regular price
$48.60 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Coil (Tripping) |
| Product series / family name | Electrical protection > MCBs accessories > UL1077 > Trip coils > Shunt trip |
| Functions | Shunt trip release coil |
| Design | for 80-125A rated current UL1077 devices |
| Dimensions | H81.3mm x W17.8mm x D76.2mm H3.2" x W0.7" x D3" |
| Order code / Manufacturer SKU | SHT3111LB 1002609 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1002609 |
| Compliant with standard(s) | UL1077 |
| Short Description | Shunt trip coil UL1077 - 1002609 - 1NO+1NC - 24-48Vac/dc |
| Type | Option = Standard (No options) |
| Control Voltage (DC) | 24Vdc-48Vdc ``24 ``48 |
| Control Voltage (AC) | 24Vac-48Vac `24 `36 `48 |
| Normally Open (NO) auxliary contacts | 1 |
| Normally Closed (NC) auxiliary contacts | 1 |
| Contacts type | 1NO+1NC (1 Normally Open + 1 Normally Closed) aux. contacts |
| Net weight | 66 |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | Shunt trip release coil - NOARK |
| Description generating formula | A |
| Description | Shunt trip release coil - for 80-125A rated current UL1077 devices - NOARK - 24Vac-48Vac / 24Vdc-48Vdc control voltage - 1NO+1NC (1 Normally Open + 1 Normally Closed) aux. contacts - DIN rail mounting (35mm width) - equivalent to 1002609 |
| Catalogue connector | NOARK - MCB accessories - Shunt trip - SHT31-L SHT3111LB |
| Mounting mode | DIN rail |
| Net Width (mm) | 35 |
