SHT51B-Ex9S32/80 Shunt Release, Right Side, 190-330V 50/60Hz
Regular price
$10.67 CAD
Couldn't load pickup availability
DUTY NOTICE!
For international shipping to outside of Canada, all price listed doesn't not inlcude duties. it is customer's responsibility to pay all associated duties.
| Primary brand | NOARK |
| Main function | Coil (Tripping) |
| Product series / family name | Industrial controls > Manual Motor Starters (MMSs) > Accessories > Trip coils |
| Sub-range name | Ex9S32 series |
| Functions | Shunt trip release coil |
| Connection type | M3.5 slotted head screw connections |
| Cross-section | #18AWG / 1mm2 + 2 x #12AWG / 4mm2 conductors |
| Order code / Manufacturer SKU | SHT51B 1600076 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1600076 |
| Technical compatibility with | Ex9S32 mtr. starter |
| Short Description | Shunt trip release coil - 1600076 - Ex9S32 - 190-330Vac (50/60Hz) - right mount |
| Type | Option = Standard (No options) |
| Control Voltage (AC) | 190Vac-330Vac (50/60Hz) 200 208 220 230 240 277 |
| Tightening torque | 1.7 |
| Category code | Global_Cat_001 Electrical components |
| Product title | Shunt trip release coil - NOARK Ex9S32 series |
| Description generating formula | A |
| Description | Shunt trip release coil - NOARK (Ex9S32 series) - 190Vac-330Vac (50/60Hz) control voltage - M3.5 slotted head screw connections - right mounting - compatible with Ex9S32 mtr. starter - equivalent to 1600076 |
| Product image quality | Good |

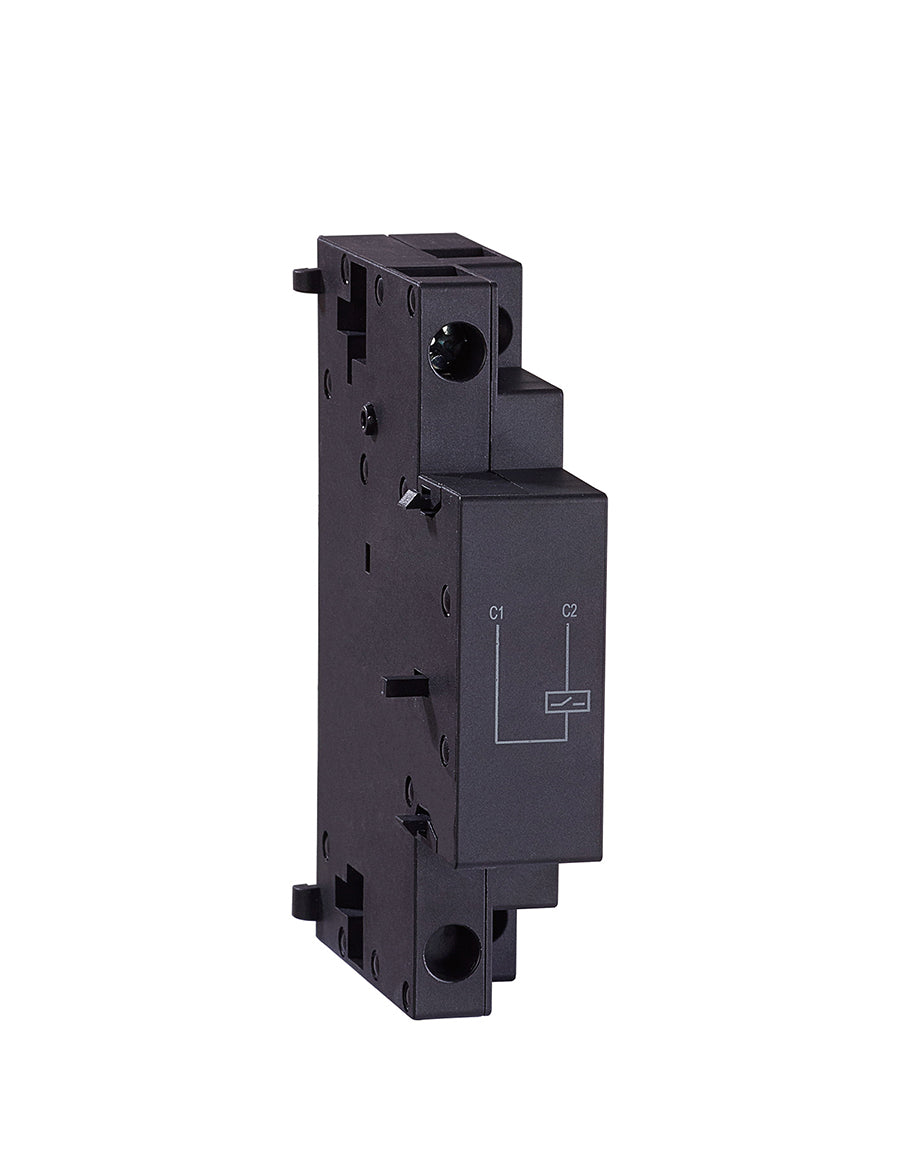

| Product Image (Full size) | SHT51.jpg |
| Documents names | NOARK - Ex9S series - Datasheet.pdf |
| Catalogue connector | NOARK - Ex9S32 series SHT51B |
| Mounting mode | right mounting |
