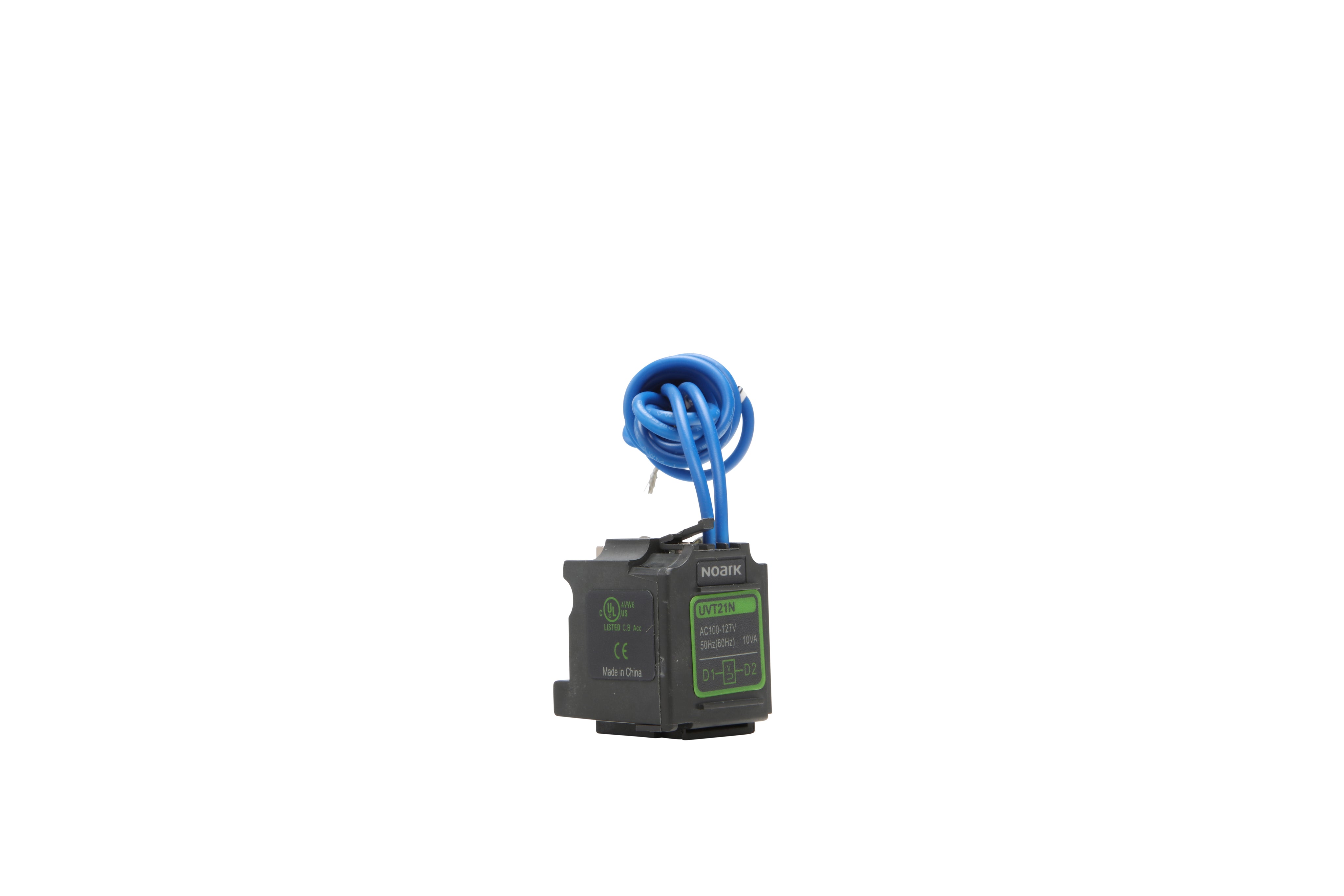

UVT26ND-MCCB/MCP/MCS Under-Voltage Trip UL 489 , M6, 24-30 Vdc
Regular price
$221.11 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Coil (Tripping) |
| Product series / family name | Electrical protection > MCCBs and disconnector switches accessories > Auxiliary controls |
| Functions | Undervoltage (U/V) trip release coil |
| Dimensions | H65mm x W28.4mm x D32mm H2.56" x W1.12" x D1.26" |
| Order code / Manufacturer SKU | UVT26ND 1101179 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1101179 |
| Compliant with standard(s) | UL489 listed (file number E355392) CSA C22.2 No.5 IEC/EN 60947-2 CE compliant RoHS compliant |
| Technical compatibility with | for M6 frame size |
| Short Description | Undervoltage (U/V) trip release coil - 1101179 - 24-30Vdc - for M6 |
| Type | Option = Standard (No options) |
| Net weight | 100 |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | Undervoltage (U/V) trip release coil - NOARK |
| Description generating formula | A |
| Description | Undervoltage (U/V) trip release coil - for M6 frame size - NOARK - 24Vdc-30Vdc control voltage - equivalent to 1101179 |
| Catalogue connector | NOARK - Circuit breaker accessories UVT26ND |
