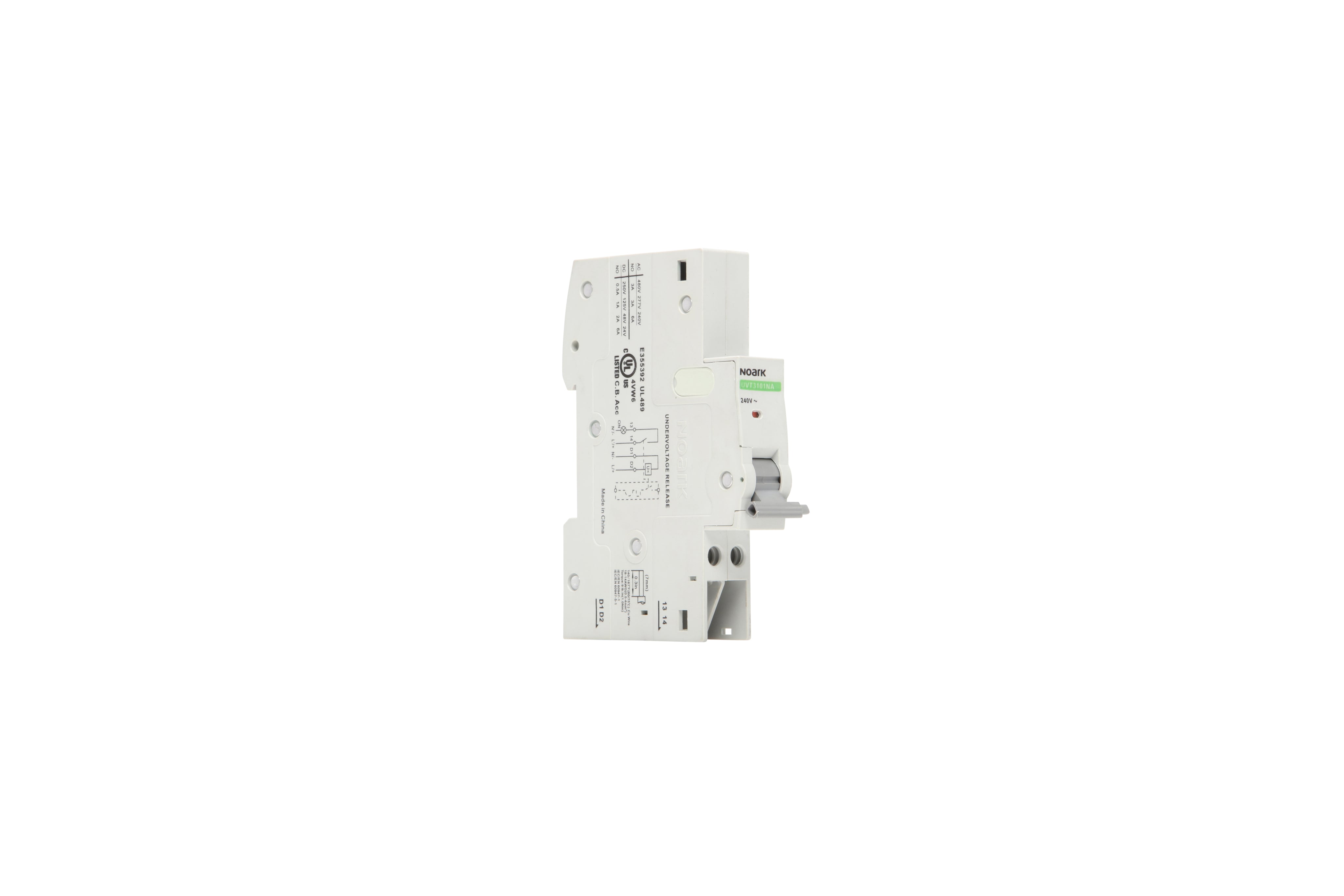

UVT31NB-MCB Undervoltage Trip, UL 489, 48 Vac/dc
Regular price
$35.93 CAD
Couldn't load pickup availability
DUTY NOTICE!
For international shipping to outside of Canada, all price listed doesn't not inlcude duties. it is customer's responsibility to pay all associated duties.
| Primary brand | NOARK |
| Main function | Coil (Tripping) |
| Product series / family name | Electrical protection > MCBs accessories > UL489 > Trip coils > Undervoltage trip |
| Functions | Undervoltage trip release coil |
| Design | for UL489 devices |
| Cross-section | for #18AWG...#14AWG / 0.5mm2...4mm2 Cu wires at 140/167°F / 60/75°C |
| Dimensions | H103.1mm x W17.8mm x D75.4mm 7mm / 0.3" reference stripping length H4.06" x W0.7" x D2.97" |
| Order code / Manufacturer SKU | UVT31NB 1001207 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1001207 |
| Compliant with standard(s) | UL489 |
| Short Description | Undervoltage trip coil UL489 - 1001207 - 48Vac/dc |
| Type | Option = Standard (No options) |
| Control Voltage (DC) | 48Vdc ``48 |
| Control Voltage (AC) | 48Vac `48 |
| Tightening torque | 9lb.in / 1 |
| Net weight | 97 |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | Undervoltage trip release coil - NOARK |
| Description generating formula | A |
| Description | Undervoltage trip release coil - for UL489 devices - NOARK - 48Vac / 48Vdc control voltage - DIN rail mounting (35mm width) - equivalent to 1001207 |
| Catalogue connector | NOARK - MCB accessories - Under-voltage trip - UVT31 UVT31NB |
| Mounting mode | DIN rail |
| Net Width (mm) | 35 |
| Application type | Branch Circuit Protection - Convenience receptacle circuits (internal/external) - Motor control circuits - Load circuits leaving the equipment (external) - HVACR equipment -- heating / ventilation / air conditioning / refrigeration (internal/external) - PLC I/O points - Power supplies - Control instrumentation - Relays - UPS - Power conditioners |
