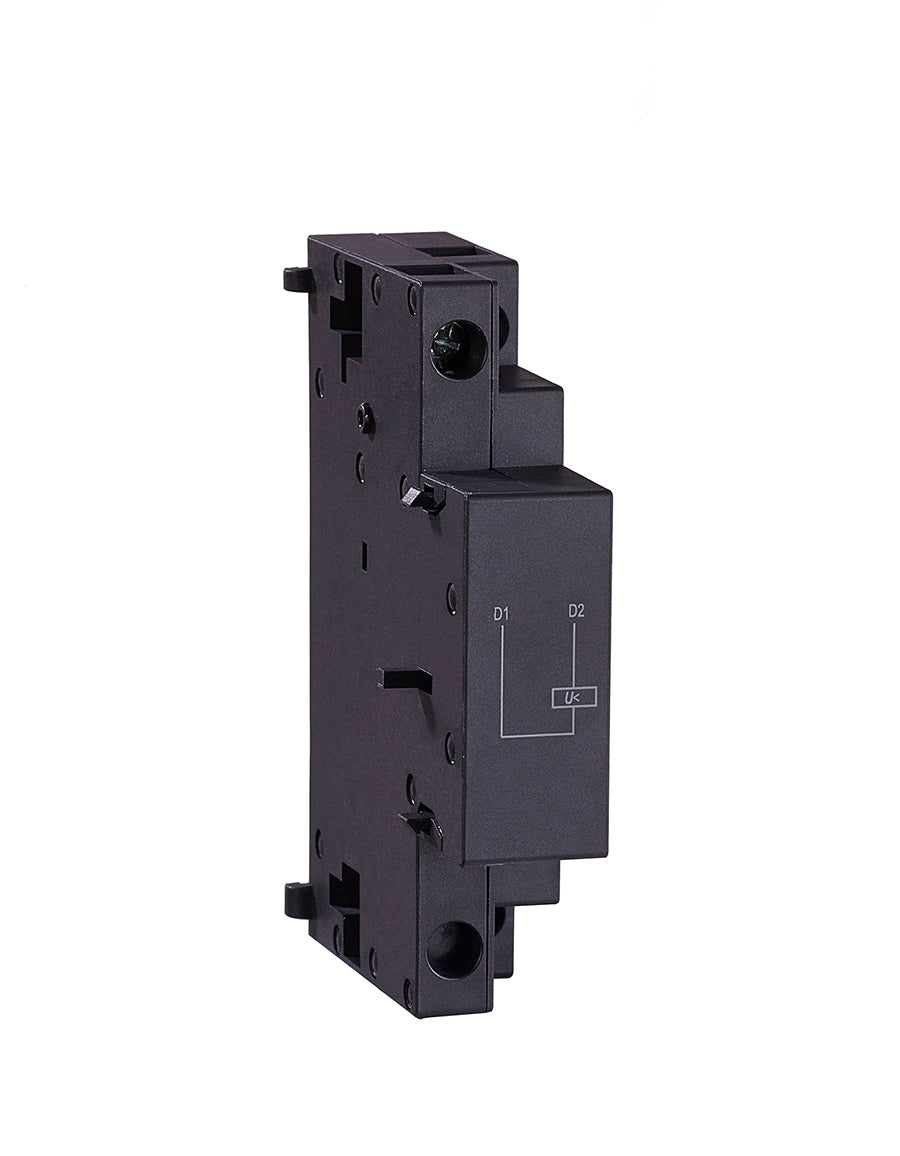

UVT51H-Ex9S32/80 Undervoltage Release, Right Side, 380-415V 50Hz
Regular price
$12.43 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Coil (Tripping) |
| Product series / family name | Industrial controls > Manual Motor Starters (MMSs) > Accessories > Trip coils |
| Sub-range name | Ex9S32 series |
| Functions | Undervoltage (U/V) trip release coil |
| Connection type | M3.5 slotted head screw connections |
| Cross-section | #18AWG / 1mm2 + 2 x #12AWG / 4mm2 conductors |
| Order code / Manufacturer SKU | UVT51H 1600074 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1600074 |
| Technical compatibility with | Ex9S32 mtr. starter |
| Short Description | Undervoltage (U/V) trip release coil - 1600074 - Ex9S32 - 380-415Vac (50Hz) - right mount |
| Type | Option = Standard (No options) |
| Control Voltage (AC) | 380Vac-415Vac (50Hz) 380 400 415 |
| Tightening torque | 1.7 |
| Category code | Global_Cat_001 Electrical components |
| Product title | Undervoltage (U/V) trip release coil - NOARK Ex9S32 series |
| Description generating formula | A |
| Description | Undervoltage (U/V) trip release coil - NOARK (Ex9S32 series) - 380Vac-415Vac (50Hz) control voltage - M3.5 slotted head screw connections - right mounting - compatible with Ex9S32 mtr. starter - equivalent to 1600074 |
| Product image quality | Good |
| Product Image (Full size) | UVT51.jpg |
| Documents names | NOARK - Ex9S series - Datasheet.pdf |
| Catalogue connector | NOARK - Ex9S32 series UVT51H |
| Mounting mode | right mounting |
