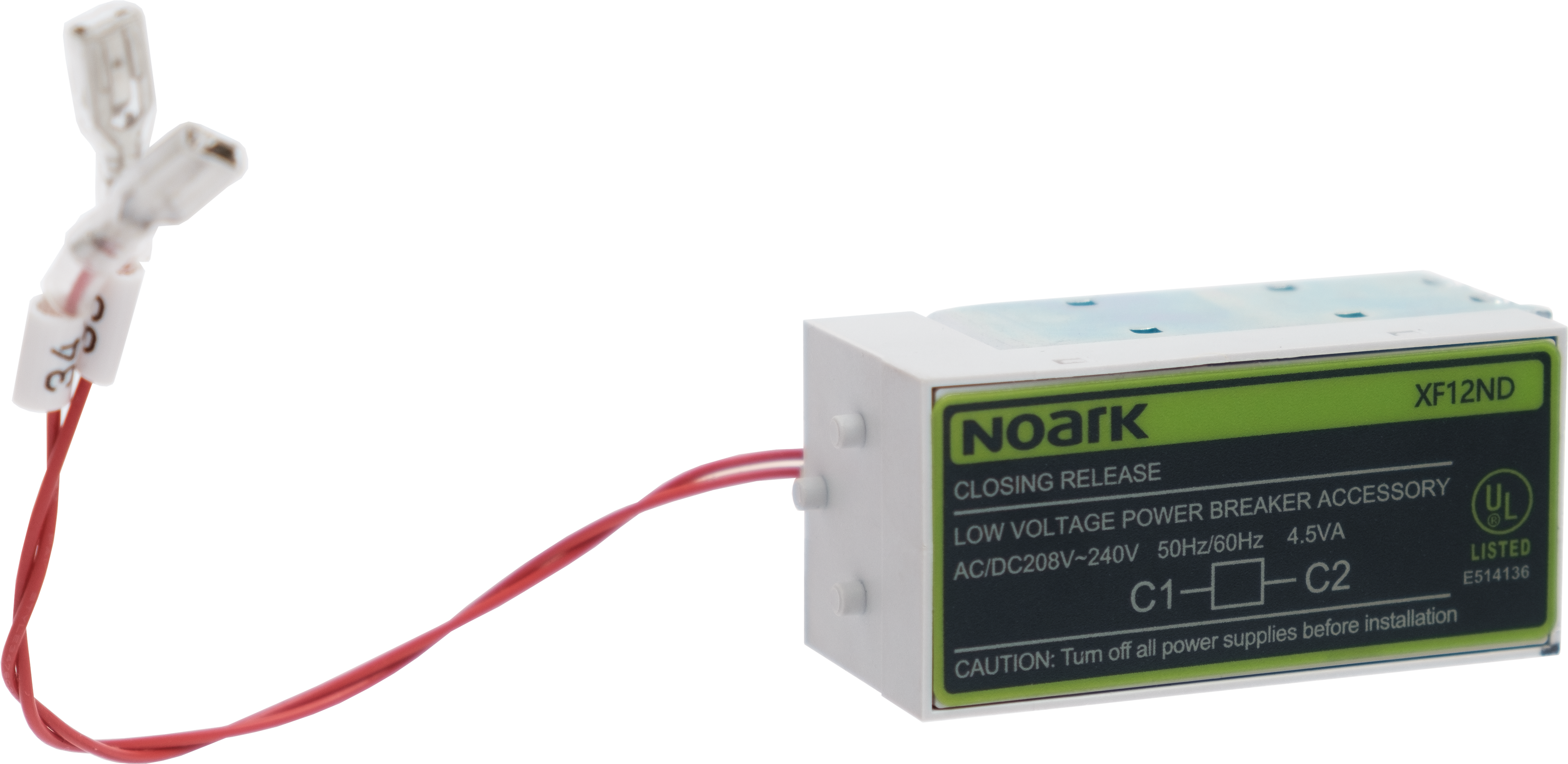

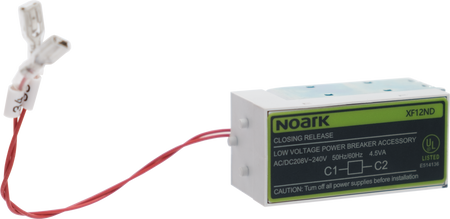

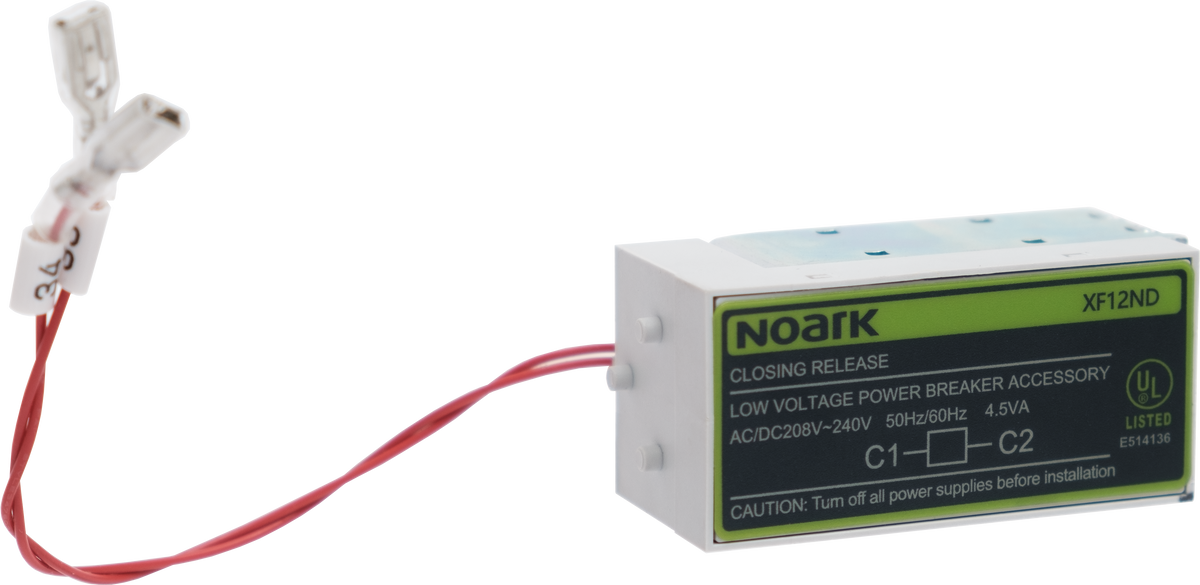

XF12ND-Closing release, For 3200/4000A (A32/A40) ACB, Control voltage 208-240Vac/dc
Regular price
$481.45 CAD
Couldn't load pickup availability
| Primary brand | NOARK |
| Main function | Coil (closing) |
| Product series / family name | Electrical protection > ACBs and disconnector switches accessories > Auxiliary controls |
| Sub-range name | A32 series |
| Functions | Closing release coil |
| Dimensions | H65.3mm x W35.3mm x D32mm H2.57" x W1.39" x D1.13" |
| Order code / Manufacturer SKU | XF12ND 1800267 |
| Manufacturer product status | Commercialized |
| Equivalent to | 1800267 |
| Technical compatibility with | for A32/ASD32 (3200A) frame size |
| Short Description | Closing release coil - 1800267 - 208-240Vdc/ac - for A32/ASD32 (3200A) ACB/switch disconnector |
| Type | Option = Standard (No options) |
| Power consumption | (inrush) 500 (continuous) 4.5 (inrush) 500 (continuous) 4.5 |
| Response time | (operating time) max. 70ms / 0.07 |
| Net weight | 160 |
| Category code | Global_Cat_001001 Electrical components Electrical circuits protection |
| Product title | Closing release coil - NOARK A32 series |
| Description generating formula | A |
| Description | Closing release coil - for A32/ASD32 (3200A) frame size - NOARK (A32 series) - 146-264Vdc (208Vdc-240Vdc nom.) / 146-264Vac (208Vac-240Vac nom.) control voltage - equivalent to 1800267 |
| Catalogue connector | NOARK - A32 ASD32 accessories XF12ND |
